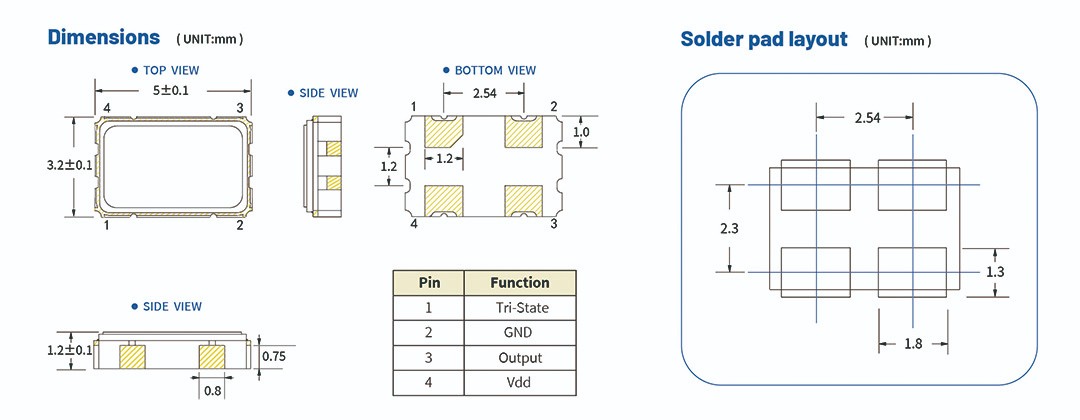

| 封裝規格[mm]: | 5.0×3.2×1.2 |
|---|---|
| 頻率范圍[MHz]: | 1 ~ 54 |
| 工作電壓 [Typ.]: | 1.8V, 2.5V, 3.3V |
| 工作溫度范圍: | -20℃ ~ +70℃, -40℃ ~ +85℃ |
| 輸出模式: | CMOS |
| 產品特色: | SPXO, Low Phase Jitter, Low Phase Noise |
| RoHS And 無鉛: | |
| 資料下載: | Datasheet |
| 商城購買: | |
Item | Symb. | Min. | Typ. | Max. | Unit | Notes | |
Frequency Range | Freq. | 1.000 | 54.000 | MHz | |||
Operating Temperature | T_use | -20 | +70 | ℃ | |||
-40 | +85 | ℃ | |||||
Storage Temperature Range | T_stg | -55 | +125 | ℃ | |||
Supply Voltage | Vdd | 1.8 | 3.3 | V | |||
Output Load | L_CMOS | 15 | pF | ||||
Current Consumption | Icc | 10 | mA | 1MHz ≤ Freq. ＜40MHz | |||
20 | 40MHz ≤ Freq. ≤ 54MHz | ||||||
Duty Cycle | SYM | 45 | 55 | % | 50 % Vdd level, L_CMOS ≤ 15 pF | ||
Rise / Fall Time | TR / TF | 5 | nS | 10% Vdd to 90% Level | |||
Start-up Time | T_str | 5 | mS | To 90% of Final Amplitude | |||
High output voltage | VOH | 0.9Vdd | V | ||||
Low output voltage | VOL | 0.1Vdd | V | ||||
Enable Voltage High (Logic 1) | VIH | 0.7Vdd | V | Output will be disable if OE is Logic 0 Output will be enable if OE is Logic 1 or open | |||
Enable Voltage Low (Logic 0) | VIL | 0.3Vdd | V | ||||
Enable Time | TPLZ | 150 | uS | ||||
RMS Phase Jitter | TRPJ | 0.3 | pSec | Integrated 12KHz to 20MHz | |||
Phase Noise @27MHz 3.3V | 10 Hz | TPN | -100 | dBc/Hz | |||
100 Hz | -125 | dBc/Hz | |||||
1 KHz | -150 | dBc/Hz | |||||
10 KHz | -160 | dBc/Hz | |||||
Aging | f_age | ±3 | ppm | 1st. Year at 25℃ | |||
Operating Temperature Range | Frequency Stability | |||
±20ppm | ±25ppm | ±30ppm | ±50ppm | |
-20℃ to +70℃ | ▲ | ★ | ★ | ★ |
-40℃ to +85℃ | ▲ | ★ | ★ | |
★：Available ▲：Conditional All condition*：Include 25℃ tolerance, operating temperature range , input voltage change,aging, load change. | ||||
|
需求描述 | |||||||
選擇需要的封裝規格及產品系列： 5.0×3.2mm；5CN Series 選擇需要的頻率： 12.288MHz 選擇需要的工作電壓： 3.3V 選擇需要的頻率精度（at 25℃）： ±20ppm 選擇需要的工作溫度范圍： -40℃~+85℃ 選擇需要的頻率&溫度特性： ±30ppm 您需要的產品是： 5CN Series 12.288MHz 3.3V ±10ppm@25℃ ±30ppm@-40~+85℃ | |||||||
| 標稱頻率[MHz] | |||||||
| 1.024 | 2.048 | 4.096 | 6.144 | 8.192 | 11.2896 | 12.288 | 16.384 |
| 22.5792 | 24.576 | 32.768 | 45.1584 | 49.152 | |||
